Set up HAM4LIFE with N1MM Logger+
A complete walkthrough — from creating your account to a live, published page — for stations logging with N1MM Logger+. N1MM broadcasts its radio status over UDP; the Web Dashboard Feeder receives it and forwards it to HAM4LIFE.
Step 1 — Create an account
Register with your email and confirm via the activation link we send you, then sign in.
Step 2 — Register your callsign
On your dashboard, choose Register callsign and enter your call (for example
PA6Y). A portable suffix like /P becomes its own page
(/live/pa6y-p). Your public page will be at
https://dashboard.ham4life.com/live/pa6y.
You must be the rightful holder of the callsign you register. Callsigns are not verified — we trust you on this. Registering a callsign that is not yours is abuse and leads to your account being blocked and the callsign released. (If a callsign you hold is already taken by someone else, use the request takeover option instead.)
Step 3 — Generate your API key
Open your callsign and click Generate API key. One key per callsign — it is shared by every feeder (feed) of that callsign, and you paste it into the feeder's API key field.
Your API key is saved to your account. It is shown on screen, is emailed to you, and you can view it again anytime on your callsign's manage page. If you ever want to replace it, click Generate API key for a new one, then paste the new key into every feeder (the old key stops working immediately).
Step 4 — Add a feed
A feed is one feeder = one live card. Give it a unique feed ID
(e.g. pa6y-1) — that is all you set. There is no card-type setting: the
card type is detected automatically from the incoming data. Multiple feeders posting to the same
callsign each use a different feed ID but the same API key.
⚠ The Feed ID must match EXACTLY. Type the same Feed ID
here and in the feeder's ID field — character for character. It is
case-sensitive: PA6Y-1, pa6y-1 and Pa6y-1 are
three different feeds. Any mismatch — a capital letter, a dash, a space — and your data never
reaches this card.
Step 5 — Install & configure the Web Dashboard Feeder
Install the feeder on the PC running your logger. It has a tab per destination and can post to several at once; each tab has its own enable checkbox, ID, API key and update interval.
Download Web Dashboard Feeder v1.6.2
Open the H4L Dashboard tab (the HAM4LIFE destination), tick Enable posting to DASHBOARD (the server URL is fixed — you don't type it), then set:
- Dashboard ID: the feed ID you created in Step 4 (e.g.
pa6y-1) - API key: the callsign API key from Step 3
- Update interval: how often this destination is posted
Step 6 — Connect N1MM Logger+
Two things to set: the feeder (which port it listens on) and N1MM (where it broadcasts).
6a — Feeder: enable the UDP receiver

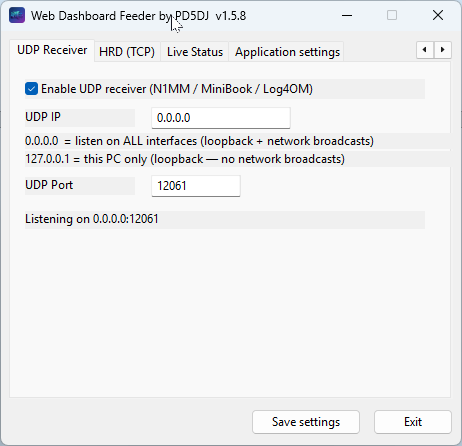

In the feeder open the UDP Receiver tab and tick
Enable UDP receiver. Leave UDP IP at 0.0.0.0 (listens
on all interfaces — same-PC and network broadcasts) and set UDP Port to the
port you will use for N1MM (a dedicated port such as 2242 is recommended — see the note
below).
0.0.0.0, and the UDP port you
will send N1MM to.6b — N1MM: broadcast Radio + Contacts

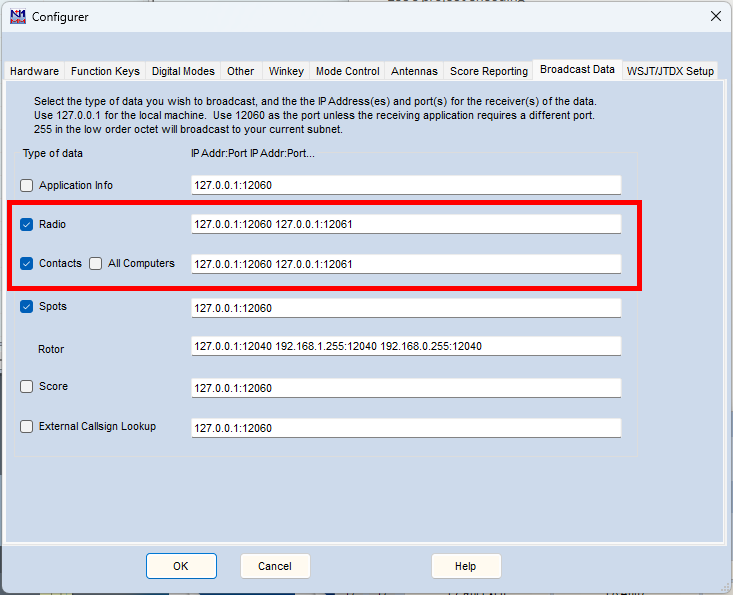

In N1MM open Config → Configure Ports, Mode Control, Winkey, etc… → Broadcast Data and tick both boxes:
- Radio (RadioInfo) — frequency, band, mode, Run/S&P.
- Contacts — the worked callsign and contest/event name. This one must be ticked, otherwise the Last worked and Event fields stay empty on your card.
Set the IP address to 127.0.0.1 (feeder on the same PC) and the
port to the same port you set in the feeder — for both
Radio and Contacts.
127.0.0.1, and the feeder's UDP port.Tip: pick one dedicated UDP port and keep it
N1MM and MiniBook broadcast on UDP port 12060 by default, which other ham software
(rotator control, band maps, digimode tools) often uses too. Pick one dedicated
port — for example 2242 — and use that same port in N1MM and in
the feeder's UDP Port field. Then switching loggers later needs no change on the feeder,
and nothing fights over the crowded default.
Check the feeder's Live Status tab — it should show the incoming data once N1MM is broadcasting.
Step 7 — Build your event page
Open your callsign and fill in the event editor. Every field is optional except the status — set that to Published when you are ready to go public. Here is what each field does:
Title & intro
The Title is the heading of your public page; the Intro is a single catchy line shown just below it.
Website (optional)
A link to your own site. When filled in it appears as a button on the public event page.
Body
The full description. Use the toolbar for bold, italic, headings, lists, links and tables; the </> Code button toggles raw-HTML editing.
Event start & end
The dates of your activity. Click the field to pick a date from the calendar; the end date cannot be before the start.
Fields shown on the cards
Tick which rows appear on your live cards. Fields that don't apply to your logger are hidden automatically — so you only turn off what you want to hide on purpose.
Photos
Add photos of your station or event, each with an optional caption. They are arranged automatically on the page. The count and size limit shown above the uploader are the current maximums.
Status
Set to Published (public) to make the page live; keep it on Draft while you are still preparing it.
Danger zone
At the bottom of the page you can remove things. Delete event page clears only the page (your callsign, API key and feeds stay). Delete callsign removes everything — callsign, feeds, API key and event page. Both ask for confirmation.
Done
When your feeder is running and a QSO/frequency change occurs, your card turns ON AIR and updates live. Your page appears in the live feeds.
